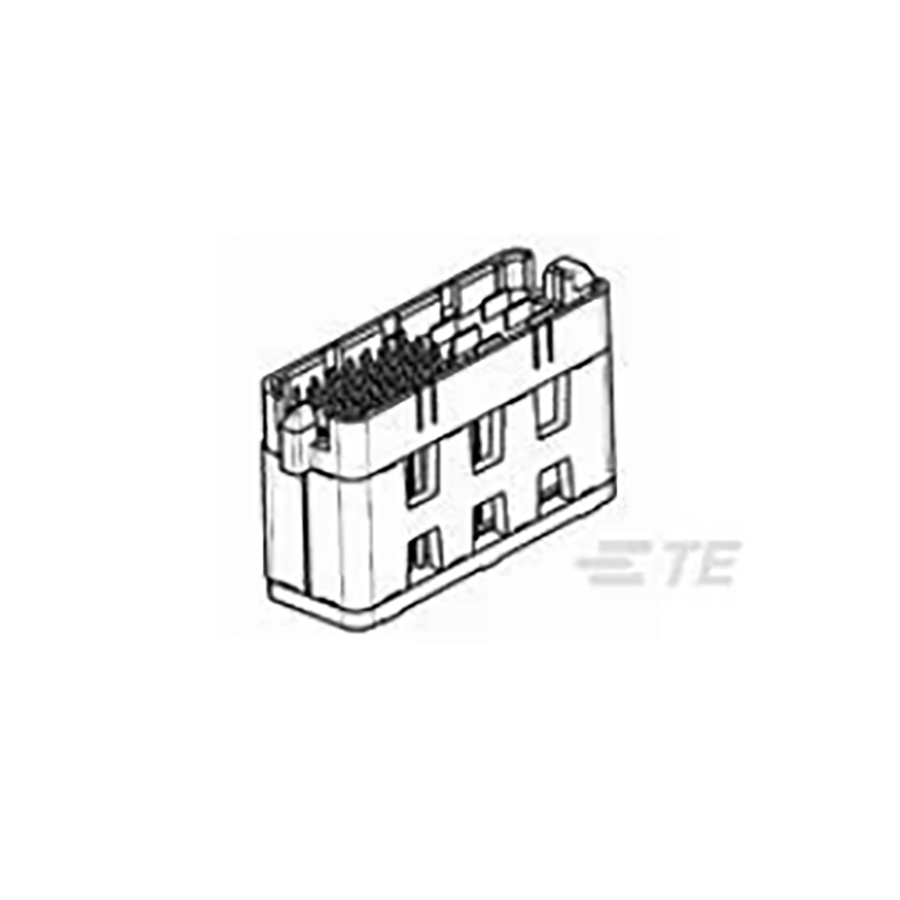

8-2180760-7
Manufacturer:
TE Connectivity
Mfr.Part #:
8-2180760-7
Datasheet:
Description:
Board to Board Connectors Through Hole Header, Pin Number of Positions:6 Number of Rows:83
| Parameter | Value |
|---|---|
| Termination | Press-Fit |
| Max Operating Temperature | 185 °C |
| Min Operating Temperature | -55 °C |
| Height | 36.7792 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Number of Contacts | 83 |
| ELV | Compliant |
| Connector Type | Header, Pin |
| Number of Positions | 6 |
| Number of Rows | 83 |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Current Rating | 1.5 A |
| Housing Color | Black |
| PCB Thickness | 60 µm |
| Tail Length | 2.0574 mm |
| Plating Thickness | 2.54 µm |
| Number of Power Positions | 6 |
| Stackable | No |
| Stack Height | 37.0078 mm |
| Preloaded | Yes |
| Mated Stacking Heights | 37 mm |
| Sealable | No |
| Contact Finish Thickness - Mating | 76 nm |
| Mating Alignment | With |
| Number of Pairs | 24 |
